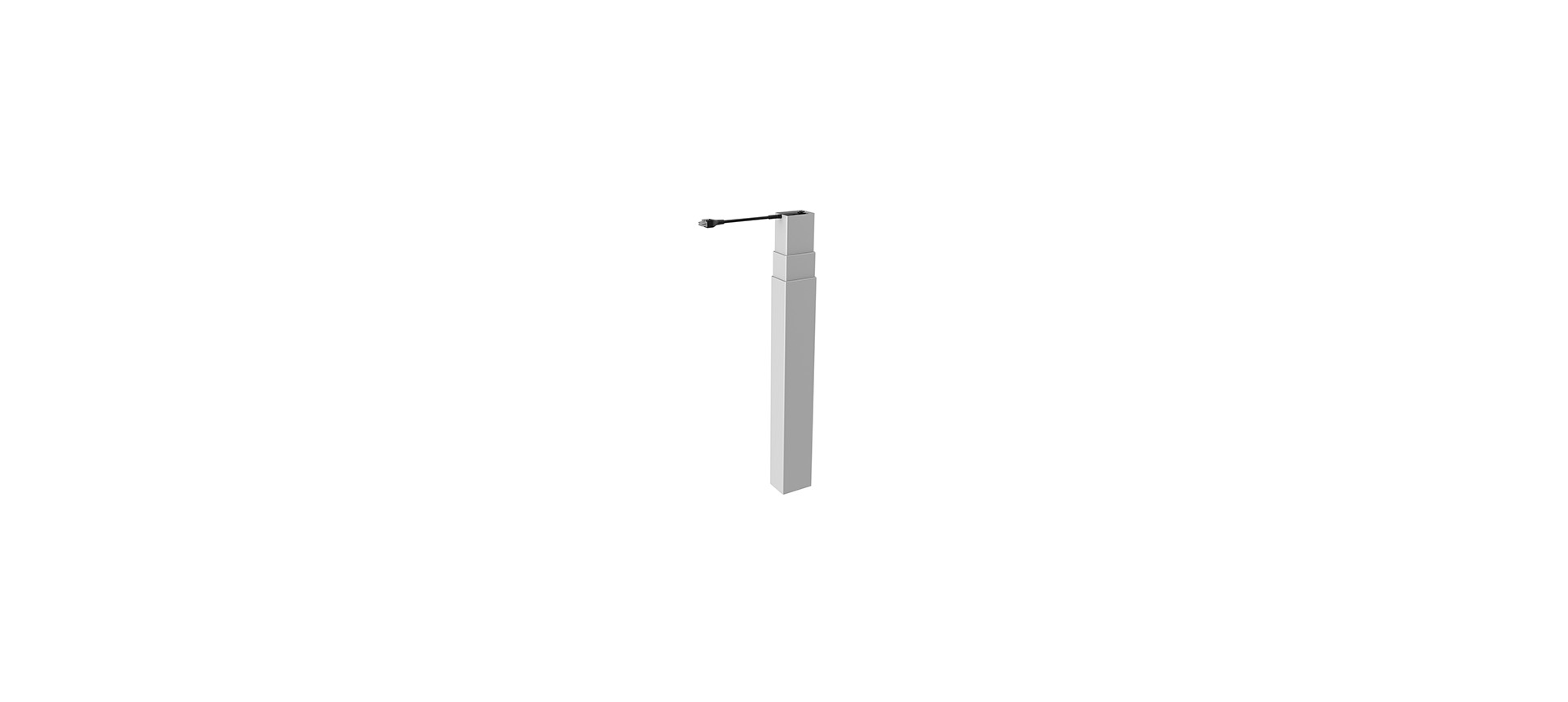

ID461.3

Home > Products > Office > Lifting Columns

Technical data

Load capacity

800N

Installation dimensions

520mm

Stroke

650mm

Maximum speed

35mm/s

Noise level

＜48dB

Feedback

Hall feedback

Sectional profile sizes

Outer: 80x60mm / Center: 75x55mm / Inner: 70x50mm

Column type

Straight

Appearance

Hole-free design

Surface treatment

Electrostatic Plastic Powder Coating

Ambient temperatures

10℃-40℃

Color

White (RAL9016), Black (RAL9005), Grey (RAL9006)

Product Description

OKIN lifting columns are characterized by high efficiency and stability and constant and smooth movement. Because of unique gears and screw assemblies, the table moves silently during the entire lifting/lowering operation.
The In-line Drive is designed to be safe and reliable with nearly 15 years of product life.
The safe and powerful OKIN lifting column can be effectively used in constructing stable table systems in accordance with EN 527 and BIFMA X5.5.
