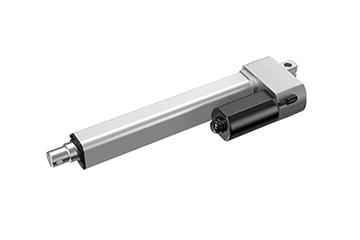

JLDQ.22
JLDQ.22
JLDQ.22
JLDQ.22
Home  >   Products   >  Bedding   >  Single Drives
Technical data
Input voltage
29V
Stroke
20-300mm
Min. install size
≥Stroke+150mm
Max. load capacity
6000N (push) / 3000N (pull)
Speed
5-42mm/sec
Noise without load
≤50dB(A)@500mm（Ambient noise≤35dB (A))
Application
Backrest, footrest, headrest, lumbar
Certifications
UL, CA65, CE-LVD, CE-EMC, ROHS, REACH
Duty cycle
2 min on/18 min off
Product Description

  1. Mechanical anti-entrapment feature

  2. Gear clevis available in different rotations (45°, 90° or 135°) to meet customer needs

  3. Powerful thrust, up to 6000N max.

  4. Quiet performance, with under 50dB noise while running


Download
JLDQ.22 Flyer – CN
JLDQ.22 Flyer – EN
Similar Products
Actuator
Actuator

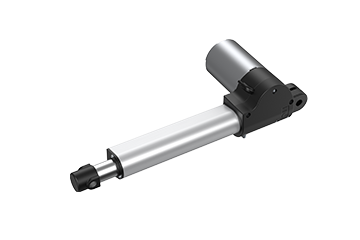

JLDQ.19

Input voltage：29V

Stroke：20-350mm

Max. load：6000N (push) / 3000N (pull)
Actuator
Actuator

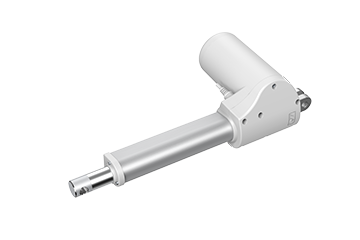

Alphadrive 5

Input voltage：29V

Stroke：20-350mm

Max. load：6000N (push) / 3000N (pull)
Actuator
Actuator

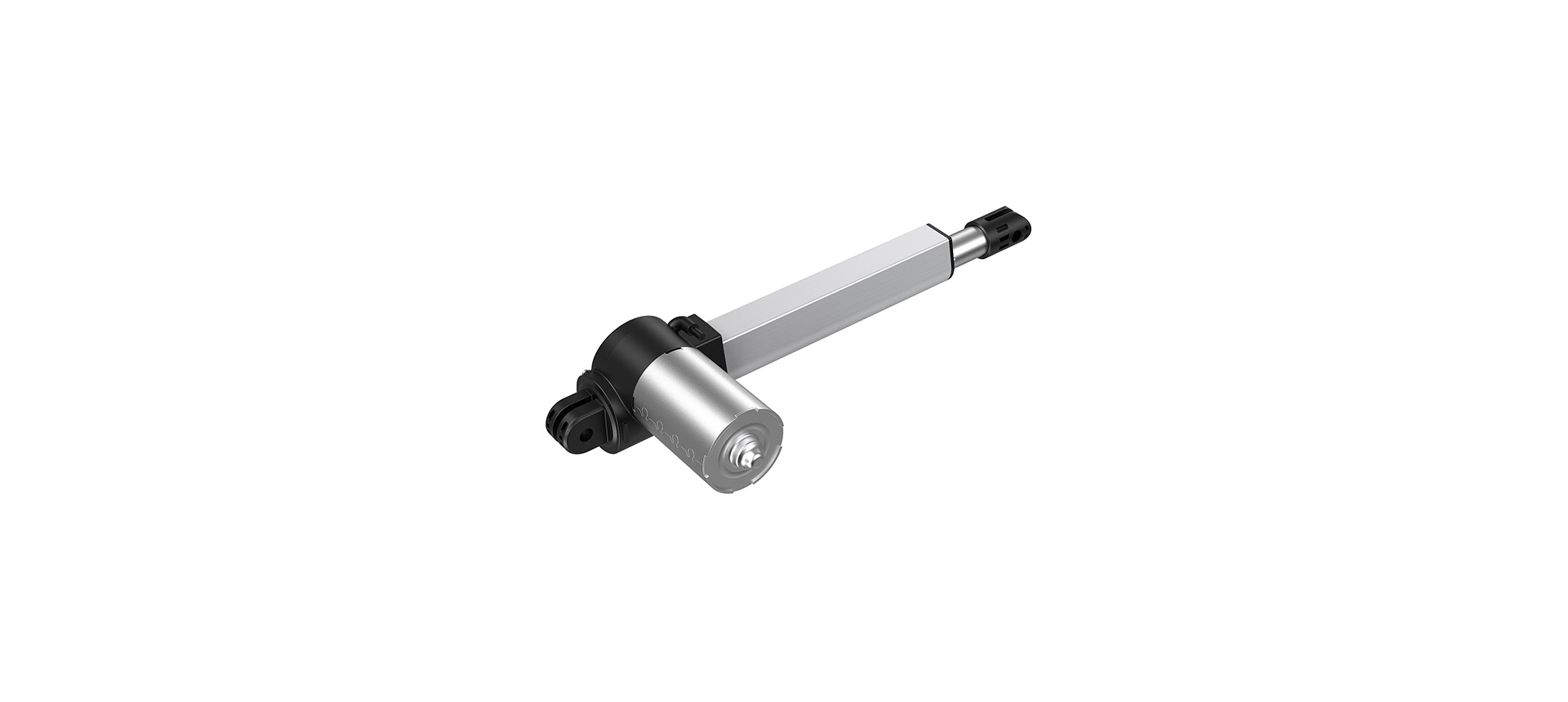

Betadrive

Input voltage：29V

Stroke：20-800mm

Max. load：6000N (push) / 6000N (pull)
Actuator
Actuator

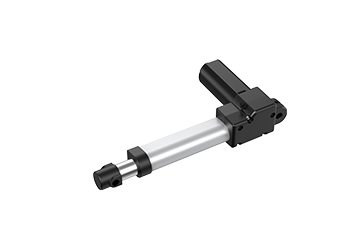

Deltadrive

Input voltage：29V

Stroke：20-500mm

Max. load：6000N (push) / 4000N (pull)
Actuator
Actuator

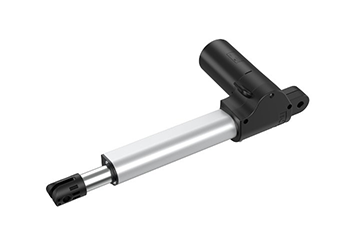

JLDQ.20

Input voltage：29V

Stroke：20-500mm

Max. load：4000N (push) / 2000N (pull)
Actuator
Actuator

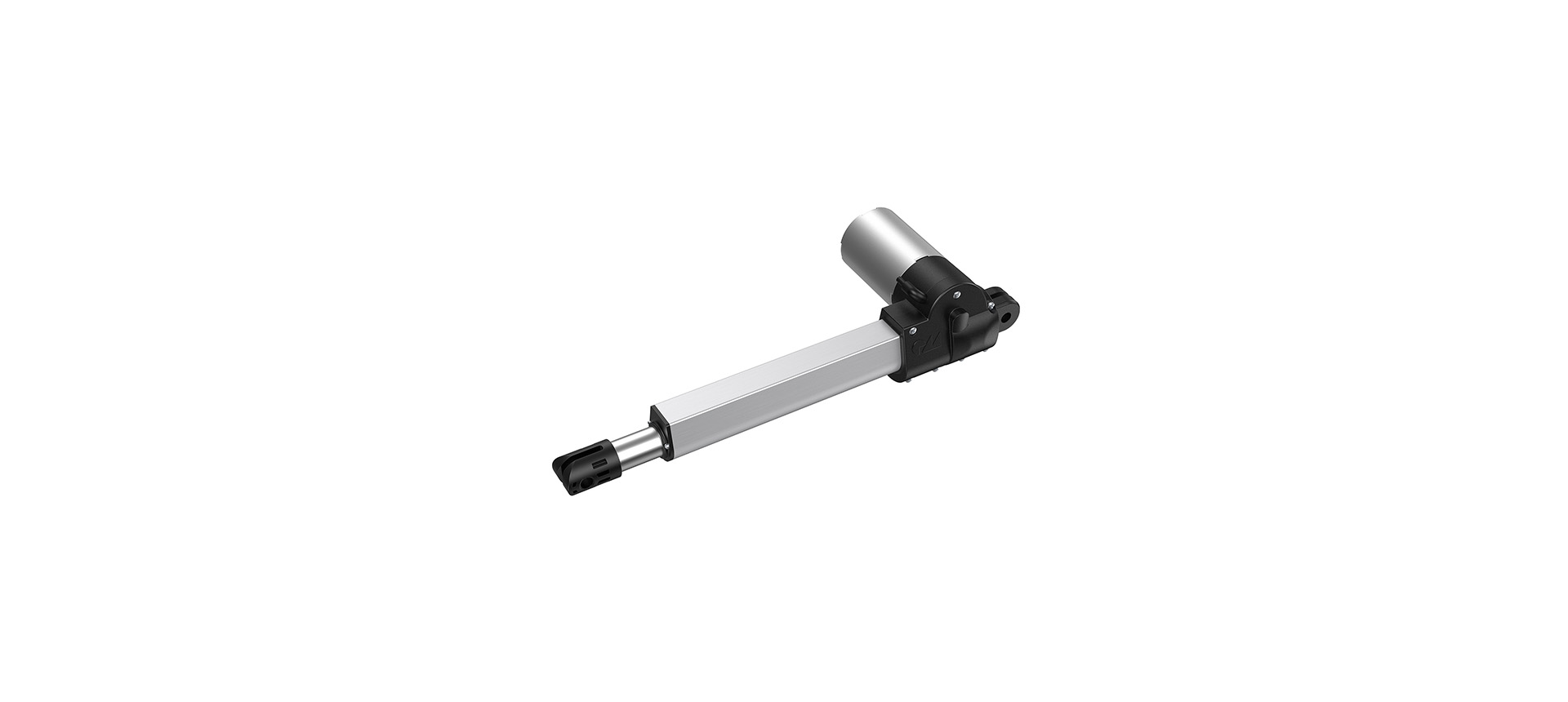

JLDQ.14B

Input voltage：29V

Stroke：20-350mm

Max. load：3000N (push) / 1000N (pull)
