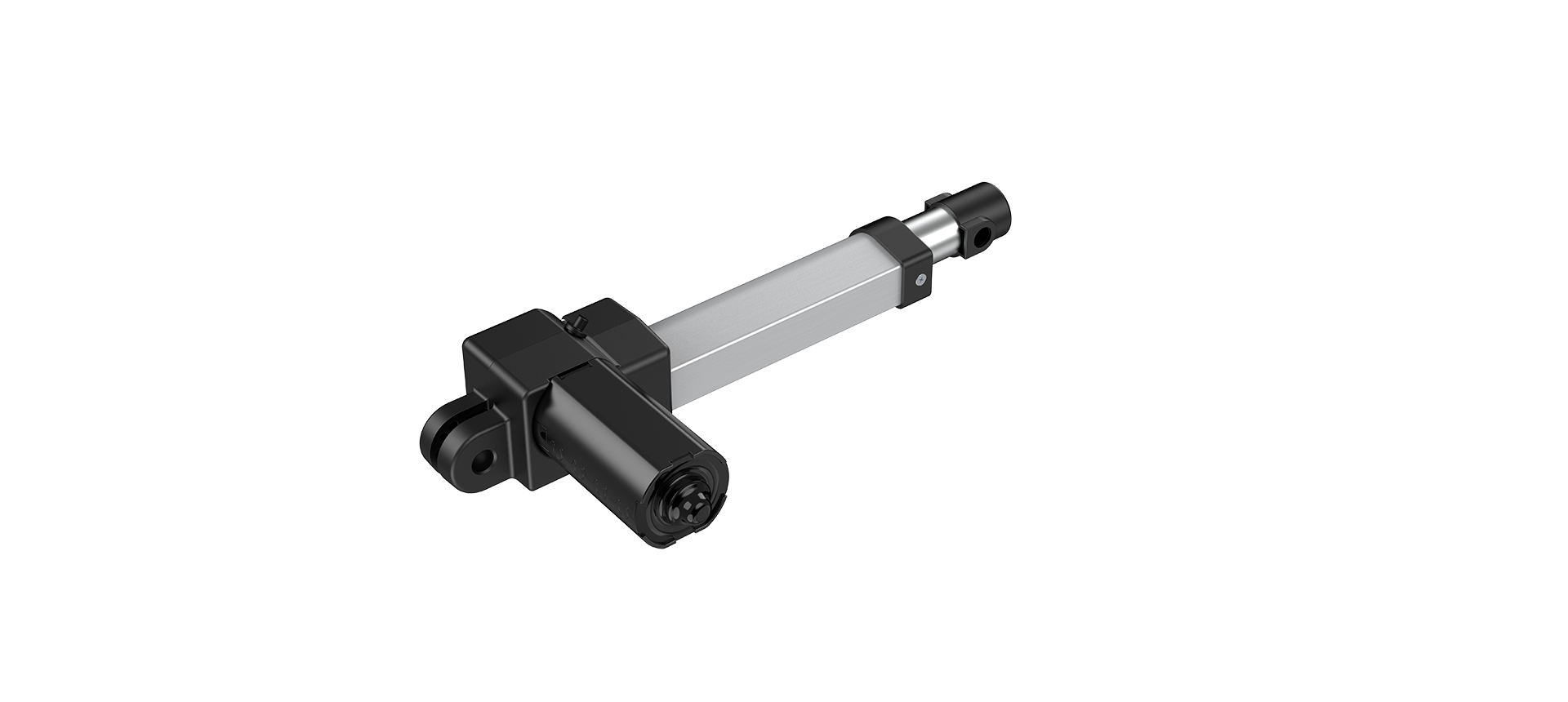

JLDQ.14B

Home > Products > Bedding > Single Drives

Technical data

Input voltage

29V

Stroke

20-350mm

Min. install size

≥Stroke+130mm

Max. load capacity

3000N (push) / 1000N (pull)

Speed

4.8-42mm/sec

Noise without load

≤65dB(A)@500mm（Ambient noise≤35dB (A))

Application

Headrest, lumbar

Certifications

UL, FCC, IC, CE-LVD, CE-EMC, ROHS, REACH, RCM

Duty cycle

2 min on/18 min off

Product Description

Mechanical anti-entrapment feature
Small installation size
Compact design for limited space requirements
