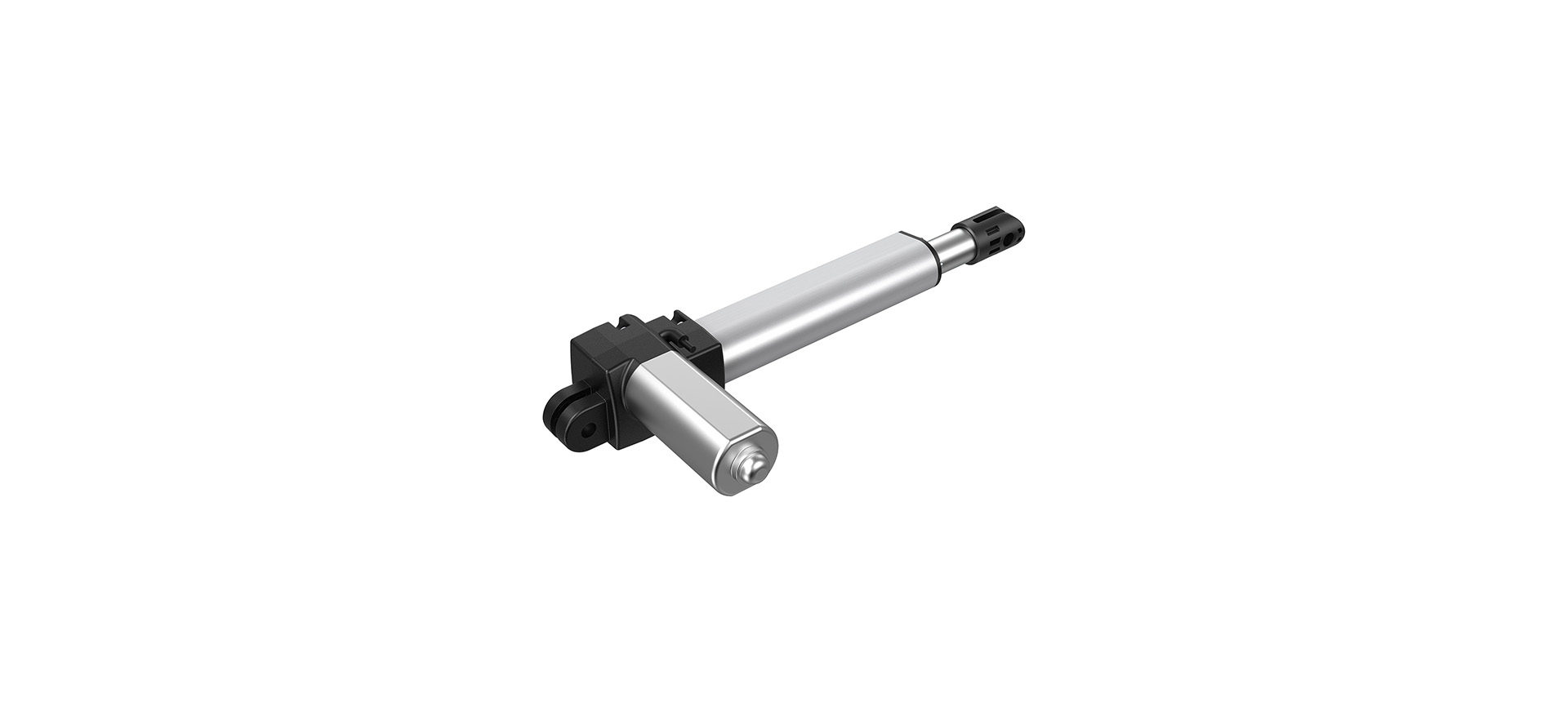

JLDQ.20

Home > Products > Bedding > Single Drives

Technical data

Input voltage

29V

Stroke

20-500mm

Min. install size

≥Stroke+130mm

Max. load capacity

4000N (push) / 2000N (pull)

Speed

7-56mm/sec

Noise without load

≤50dB(A)@500mm（Ambient noise≤35dB (A))

Application

Footrest, headrest, lumbar

Certifications

UL, CE-LVD, CE-EMC, ROHS, REACH

Duty cycle

2 min on/18 min off

Product Description

Mechanical anti-entrapment feature
Small installation size
Compact design for limited space requirements
Quiet performance, with under 50dB noise while running

Download

Similar Products

Input voltage：29V

Stroke：20-350mm

Max. load：6000N (push) / 3000N (pull)

Actuator

Alphadrive 5

Input voltage：29V

Stroke：20-350mm

Max. load：6000N (push) / 3000N (pull)

Actuator

JLDQ.22

Input voltage：29V

Stroke：20-300mm

Max. load：6000N (push) / 3000N (pull)

Actuator

Betadrive

Input voltage：29V

Stroke：20-800mm

Max. load：6000N (push) / 6000N (pull)

Actuator

Deltadrive

Input voltage：29V

Stroke：20-500mm

Max. load：6000N (push) / 4000N (pull)

Actuator

JLDQ.14B

Input voltage：29V

Stroke：20-350mm

Max. load：3000N (push) / 1000N (pull)
