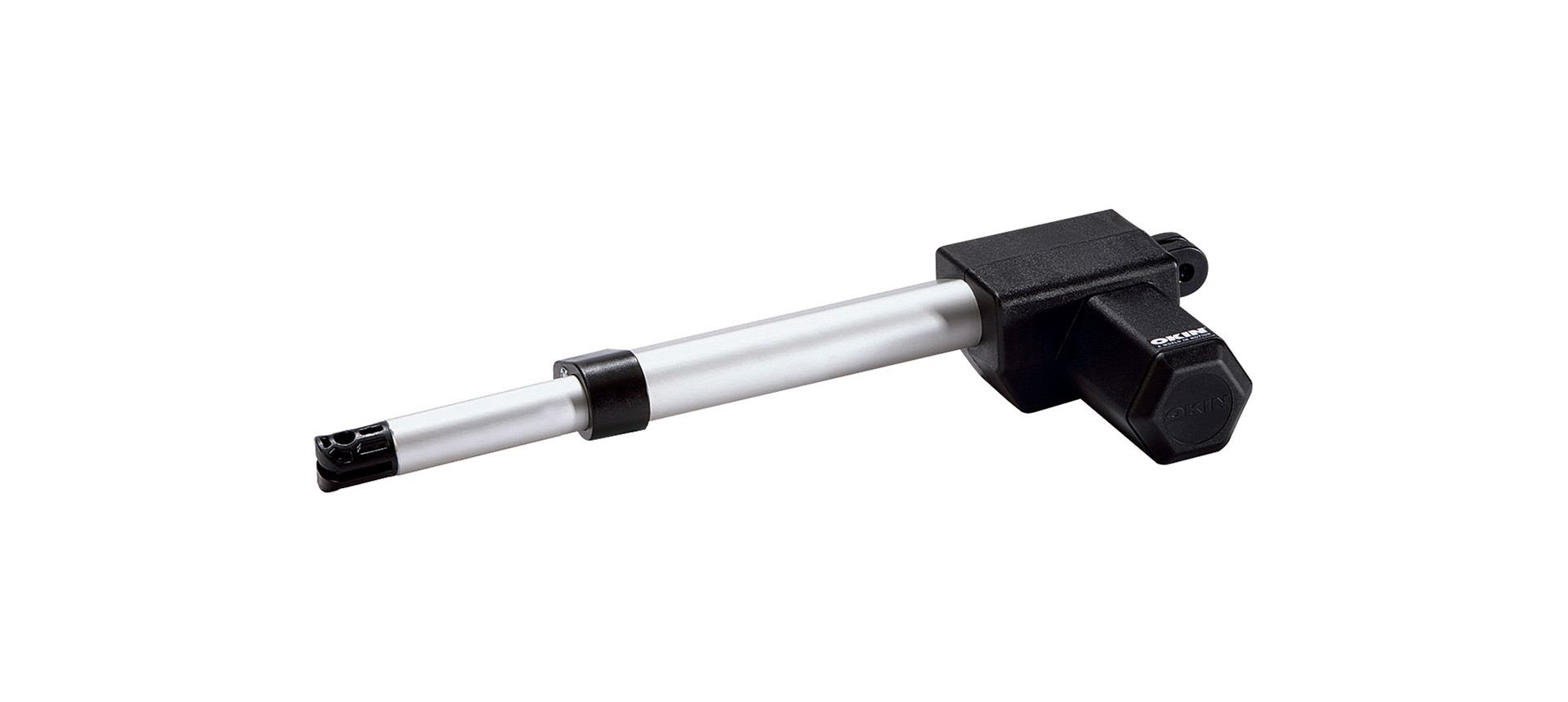

DELTADRIVE

Home > Products > Bedding > Single Drives

Technical data

Input voltage

29V

Stroke

20-500mm

Min. install size

≥Stroke+180mm

Max. load capacity

6000N (push) / 4000N (pull)

Speed

5-42mm/sec

Noise without load

≤65dB(A)@500mm（Ambient noise≤35dB (A))

Application

Backrest, footrest, headrest, lumbar

Certifications

UL, ETL, CA65, CE-LVD, CE-EMC, ROHS， REACH,SAA, RCM, C-Tick ,CB

Duty cycle

2 min on/18 min off

Product Description

Mechanical anti-entrapment feature
Powerful thrust, up to 6000N max.

Download

DELTADRIVE Flyer – CN

DELTADRIVE Flyer – EN

Similar Products

Actuator

JLDQ.19

Input voltage：29V

Stroke：20-350mm

Max. load：6000N (push) / 3000N (pull)

Actuator

Alphadrive 5

Input voltage：29V

Stroke：20-350mm

Max. load：6000N (push) / 3000N (pull)

Actuator

JLDQ.22

Input voltage：29V

Stroke：20-300mm

Max. load：6000N (push) / 3000N (pull)

Actuator

Betadrive

Input voltage：29V

Stroke：20-800mm

Max. load：6000N (push) / 6000N (pull)

Actuator

JLDQ.20

Input voltage：29V

Stroke：20-500mm

Max. load：4000N (push) / 2000N (pull)

Actuator

JLDQ.14B

Input voltage：29V

Stroke：20-350mm

Max. load：3000N (push) / 1000N (pull)
