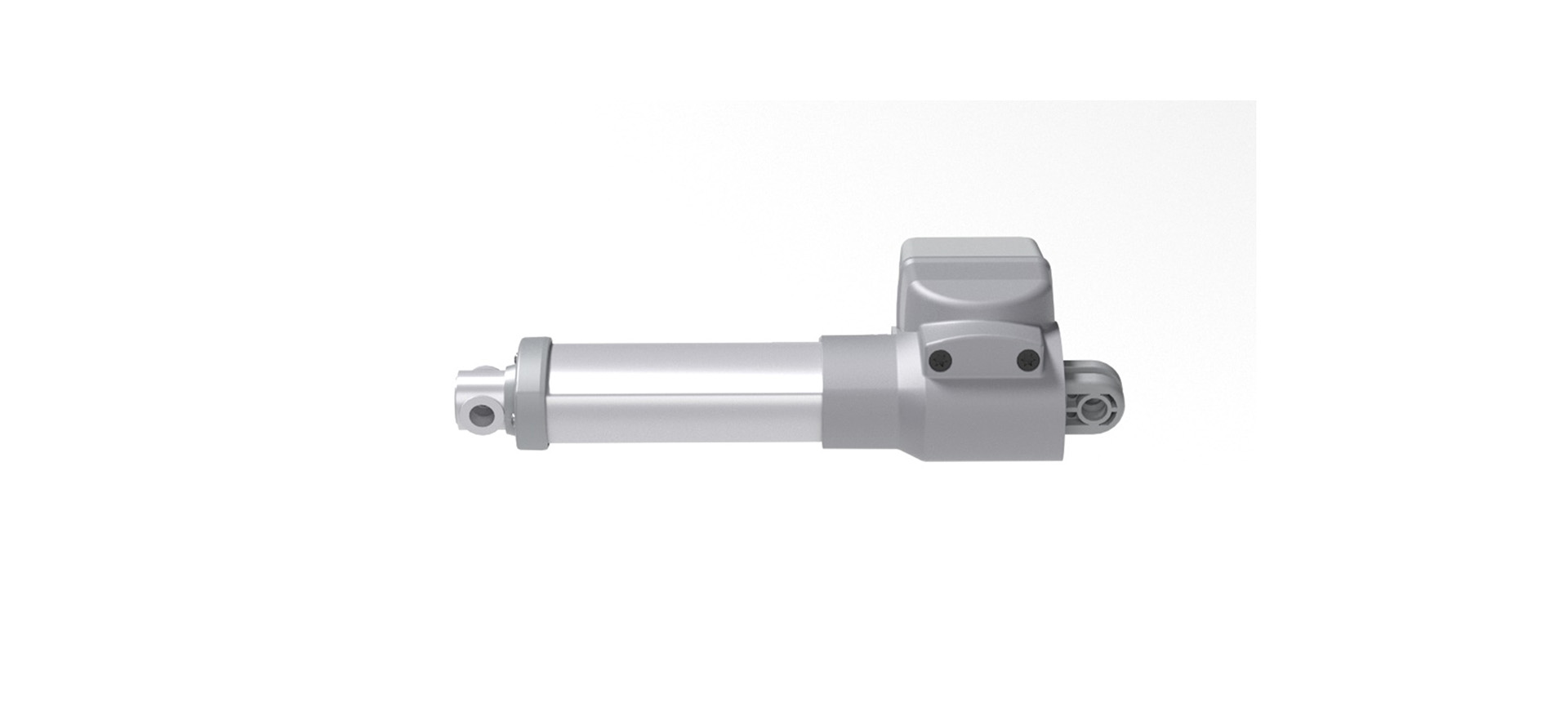

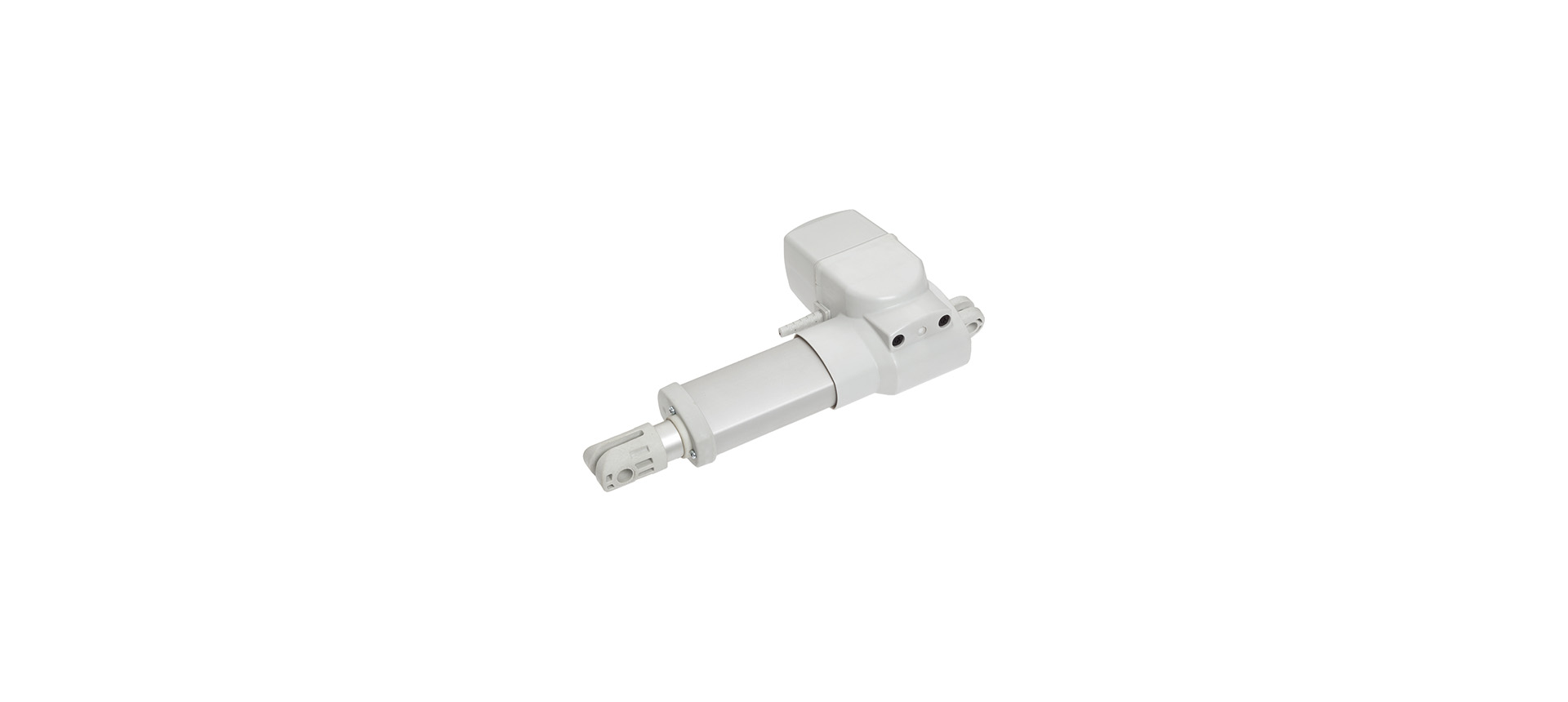

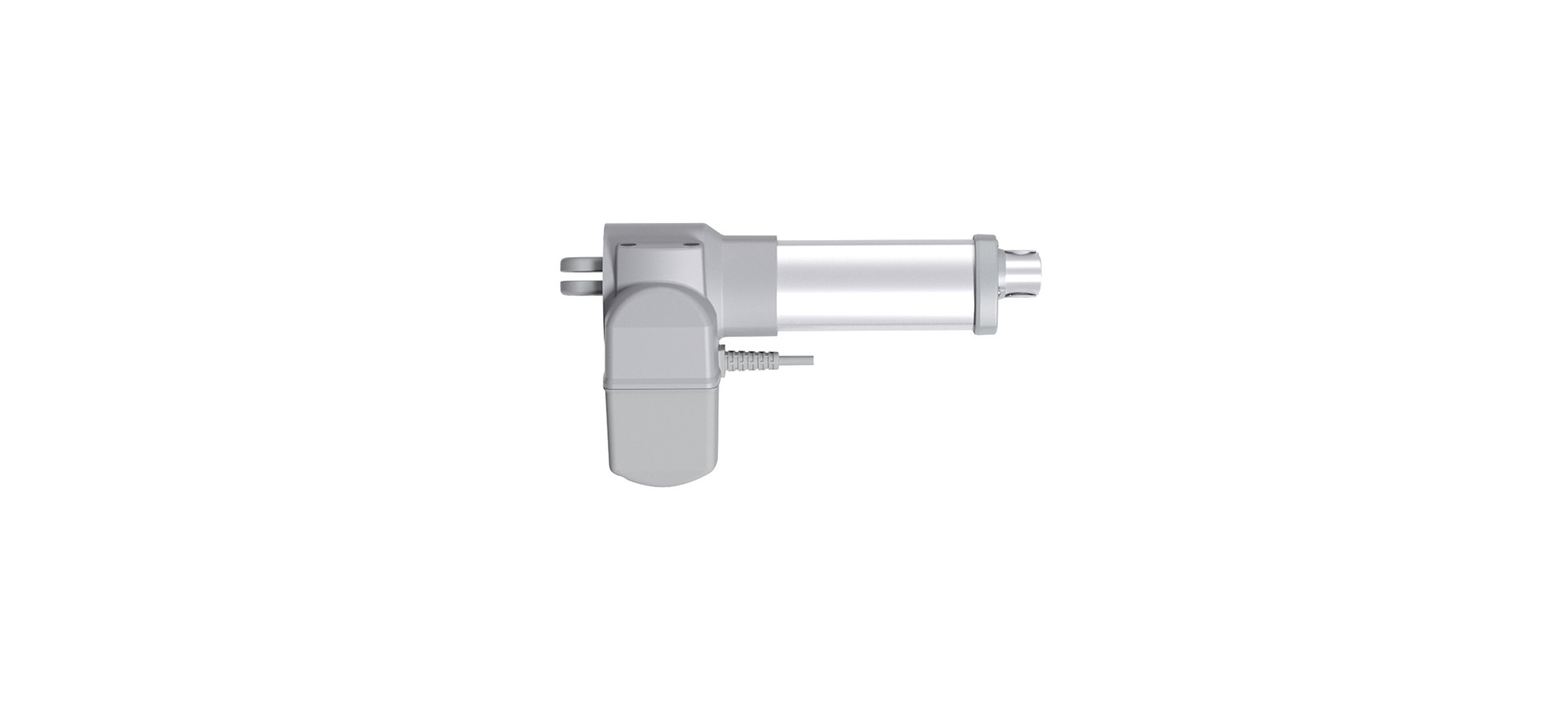

Megamat XS
Megamat XS
Megamat XS
Megamat XS
Megamat XS
Megamat XS
Home  >   Products   >  Medical   >  Actuators
Technical data
Colour
Grey
Input voltage
24-29V
Installation size
150+Stroke (20-400mm)
Max. load
3000N
Ambient temperatures
10℃-40℃
Installation angle
0°, 45° or 90°
Feedback
Hall sensor
Certificates / Approvals
CE,UL IEC60601-1
Noise without load
≤60dB(A)@500mm（Ambient noise≤35dB (A)
Duty cycle
Max 2min on / 8min off
Product Description

  1. Compact size with long stroke.

  2. Fast speed.

  3. Multi-angle installation: Megamat XS can be installed at 0°, 45° and 90° angles.

Download
MEGAMAT XS Flyer - EN
MEGAMAT XS Flyer - CN
Similar Products
Actuator
Actuator
DA28

Installation size：178+Stroke (25-450mm)

Max. load：4000N

Installation angle：0° or 90°
Actuator
Actuator
DA29

Installation size：165+Stroke (20-250mm)

Max. load：8000N

Installation angle：0° or 90°
Actuator
Actuator
DA31

Installation size：185+Stroke (25-50mm)

Max. load：3500N

Installation angle：0° or 90°
Actuator
Actuator
MEGAMAT 10

Installation size：165+Stroke (20-300mm)

Max. load：6000N

Installation angle：0° or 90°
Actuator
Actuator
JLDQ.19M

Installation size：160+Stroke (20-300mm)

Max. load：6000N

Installation angle：0°
Actuator
Actuator
JLDQ.20M

Installation size：150+Stroke (20-400mm)

Max. load：4000N

Installation angle：0°
Actuator
Actuator
JLDQ.22M

Installation size：165+Stroke (20-400mm)

Max. load：6000N

Installation angle：0° or 90°
Actuator
Actuator
JLDQ.30M

Installation size：160+Stroke (20-300mm)

Max. load：6000N

Installation angle：0° or 90°
Actuator
Actuator
JLDQ.30Y

Installation size：160+Stroke (20-300mm)

Max. load：6000N

Installation angle：0° or 90°
Actuator
Actuator
OKIMAT 6 Medical Version

Installation size：581+69mm or 581+87mm

Max. load：4500N
