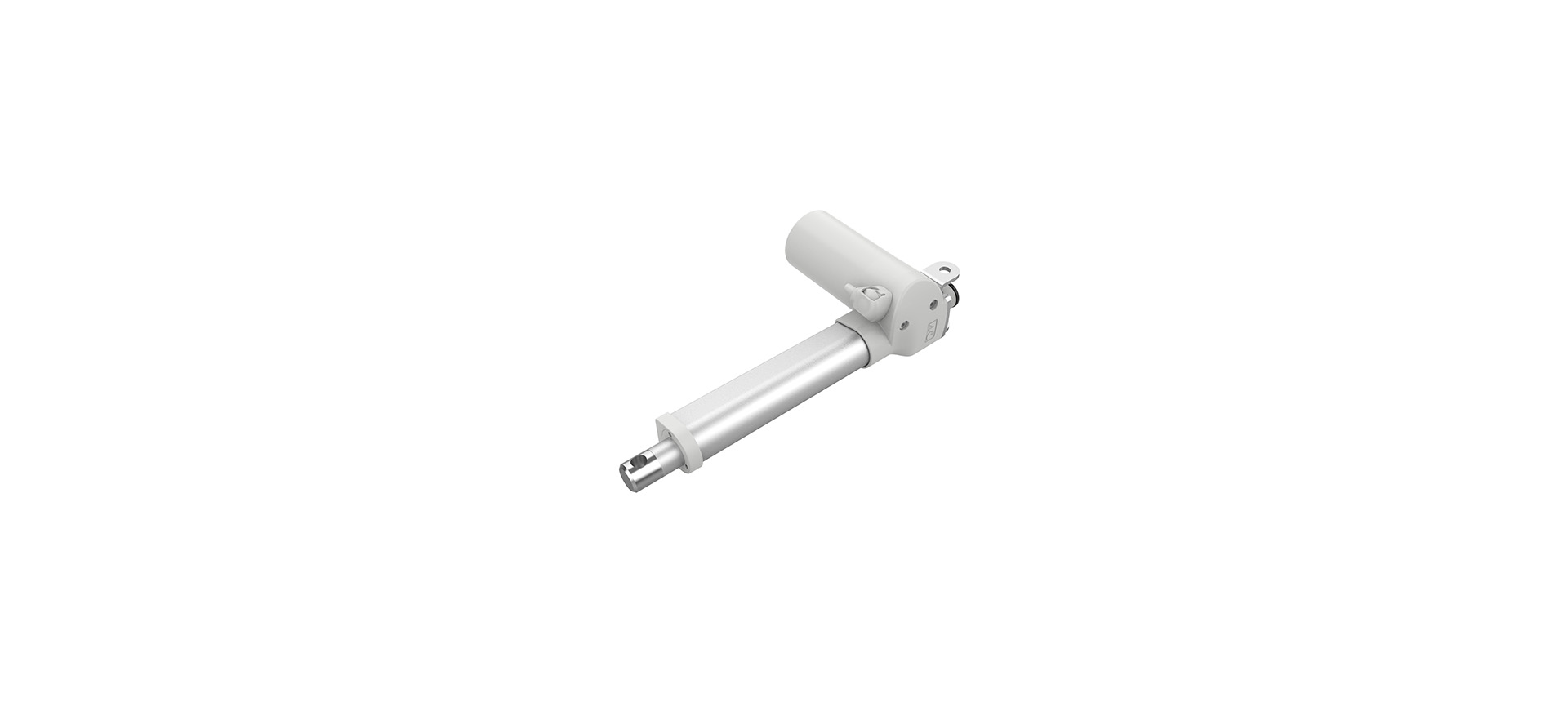

JLDQ.30Y
JLDQ.30Y
Home  >   Products   >  Medical   >  Actuators
Technical data
Colour
Grey
Input voltage
24-29V
Installation size
160+Stroke (20-300mm)
Max. load
6000N
Ambient temperatures
10℃-40℃
Installation angle
0° or 90°
Feedback
Hall sensor
Certifications / Approvals
CE,UL IEC60601-1
Noise without load
≤60dB(A)@500mm（Ambient noise≤35dB (A))
Duty cycle
Max 2min on / 8min off
Product Description

  1. Max. thrust 6000N

  2. Two installation angles available: 0° or 90° angles.

  3. JLDQ.30Y comes with a hand crank feature, allowing it to be operated manually in case of power failure.

Download
JLDQ.30Y Flyer - EN
JLDQ.30Y Flyer - CN
