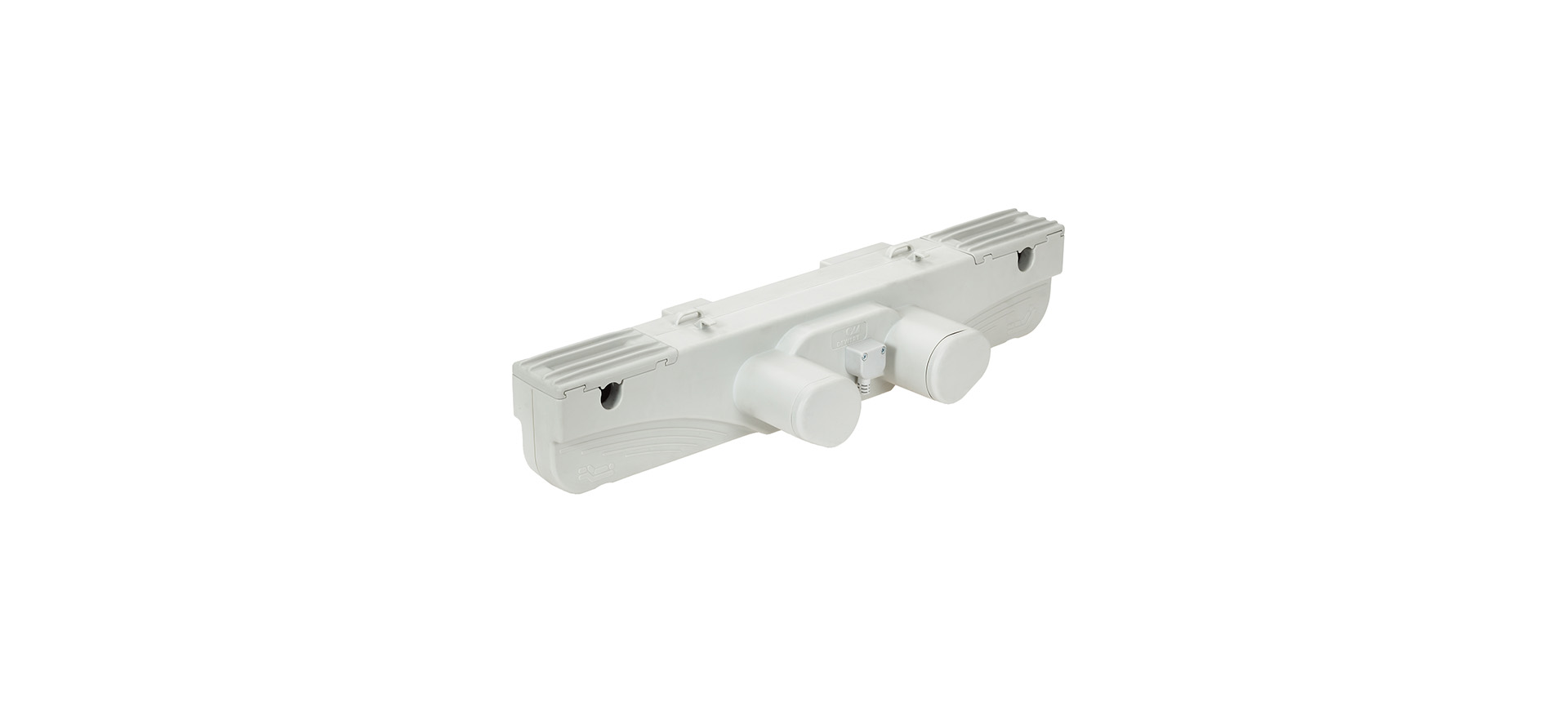

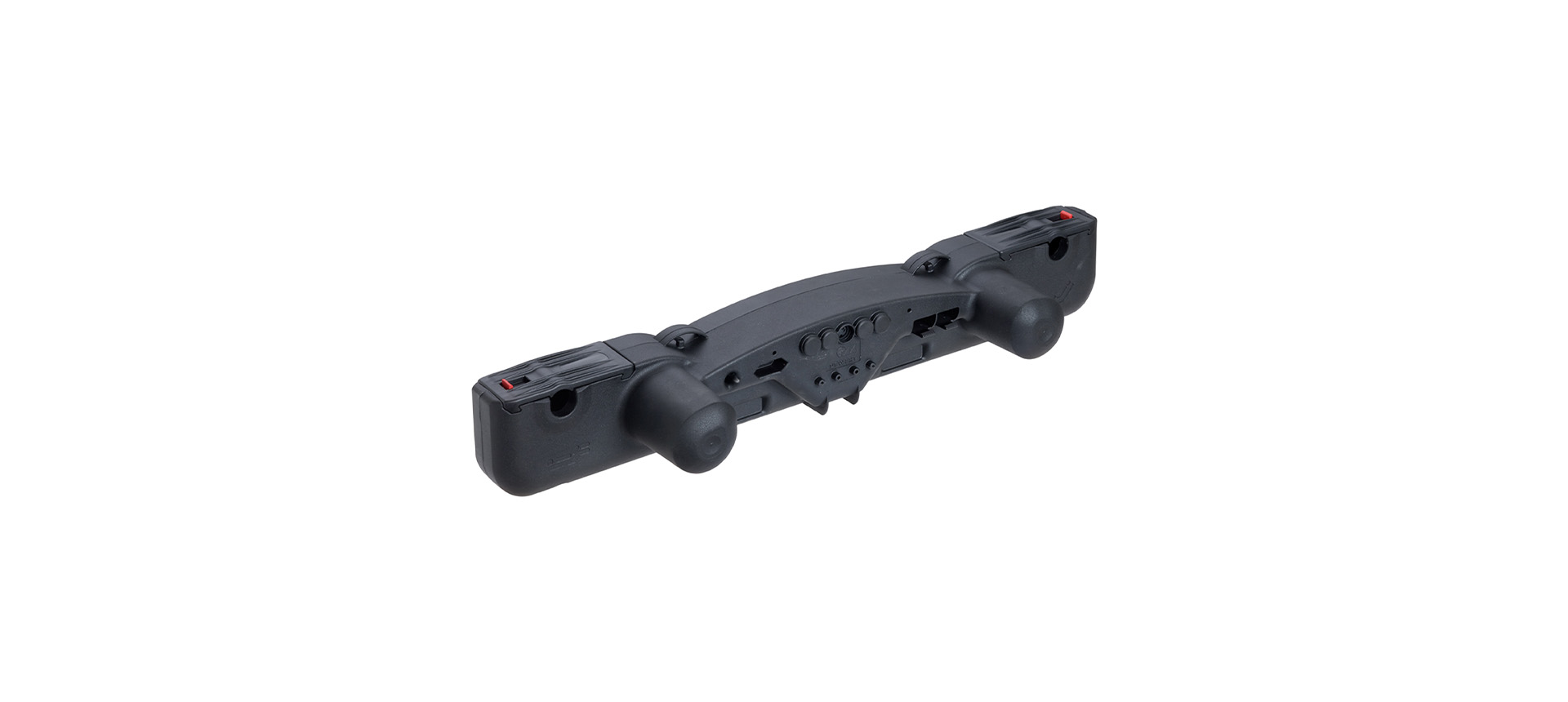

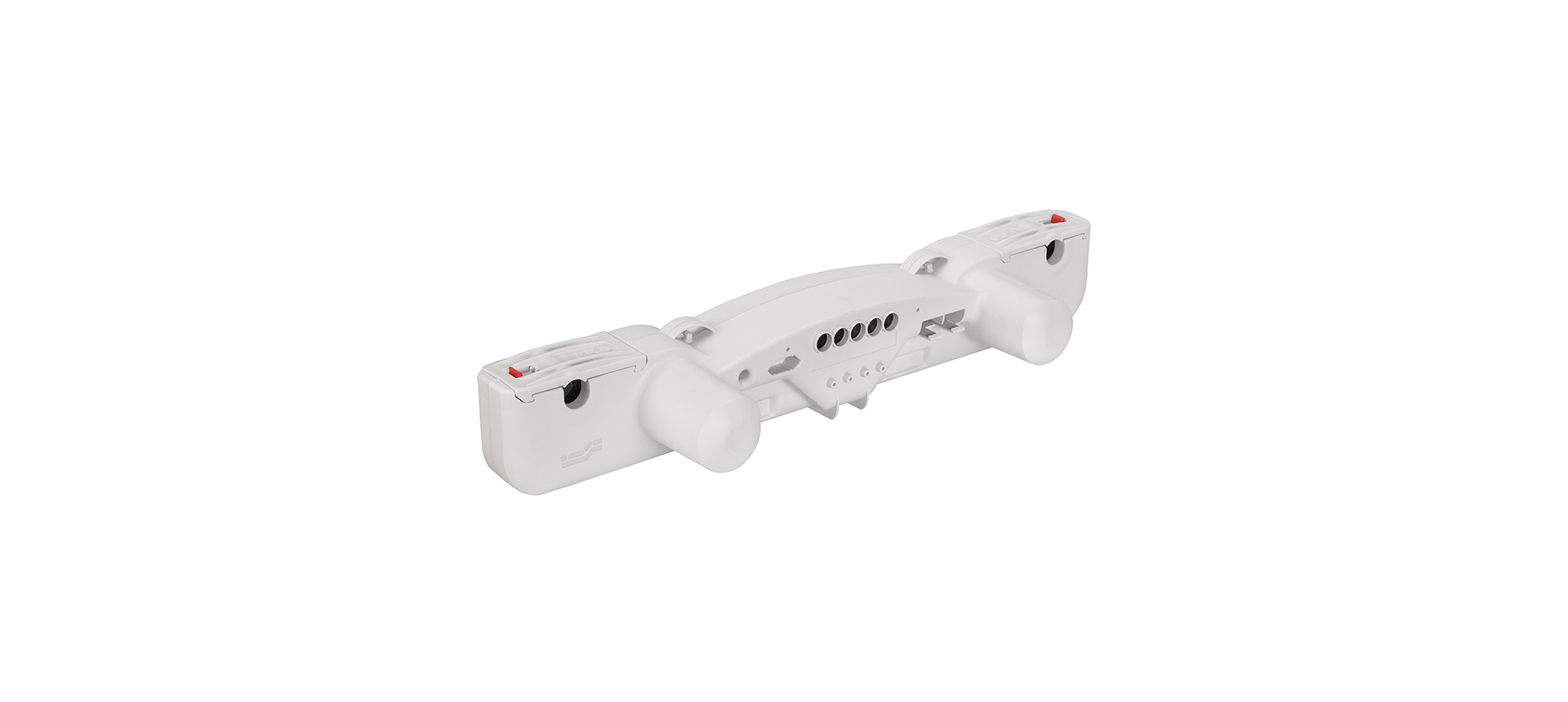

OKIMAT 6
OKIMAT 6
OKIMAT 6
OKIMAT 6
OKIMAT 6
OKIMAT 6
Home  >   Products   >  Medical   >  Actuators
Technical data
Colour
Grey
Input voltage
110-240V
Installation size
581+69mm or 581+87mm
Max. load
4500N
Ambient temperatures
10℃-40℃
Certifications / Approvals
CE,UL IEC60601-1
Noise without load
≤60dB(A)@500mm（Ambient noise≤35dB (A))
Duty cycle
Max 2min on / 8min off
Product Description

  1. Max. thrust 4500N

  2. Up to 2 drives and 2 external devices can be connected.

Similar Products
Actuator
Actuator
DA28

Installation size：178+Stroke (25-450mm)

Max. load：4000N

Installation angle：0° or 90°
Actuator
Actuator
DA29

Installation size：165+Stroke (20-250mm)

Max. load：8000N

Installation angle：0° or 90°
Actuator
Actuator
DA31

Installation size：185+Stroke (25-50mm)

Max. load：3500N

Installation angle：0° or 90°
Actuator
Actuator
MEGAMAT 10

Installation size：165+Stroke (20-300mm)

Max. load：6000N

Installation angle：0° or 90°
Actuator
Actuator
MEGAMAT XS

Installation size：150+Stroke (20-400mm)

Max. load：3000N

Installation angle：0°, 45° or 90°
Actuator
Actuator
JLDQ.19M

Installation size：160+Stroke (20-300mm)

Max. load：6000N

Installation angle：0°
Actuator
Actuator
JLDQ.20M

Installation size：150+Stroke (20-400mm)

Max. load：4000N

Installation angle：0°
Actuator
Actuator
JLDQ.22M

Installation size：165+Stroke (20-400mm)

Max. load：6000N

Installation angle：0° or 90°
Actuator
Actuator
JLDQ.30M

Installation size：160+Stroke (20-300mm)

Max. load：6000N

Installation angle：0° or 90°
Actuator
Actuator
JLDQ.30Y

Installation size：160+Stroke (20-300mm)

Max. load：6000N

Installation angle：0° or 90°
