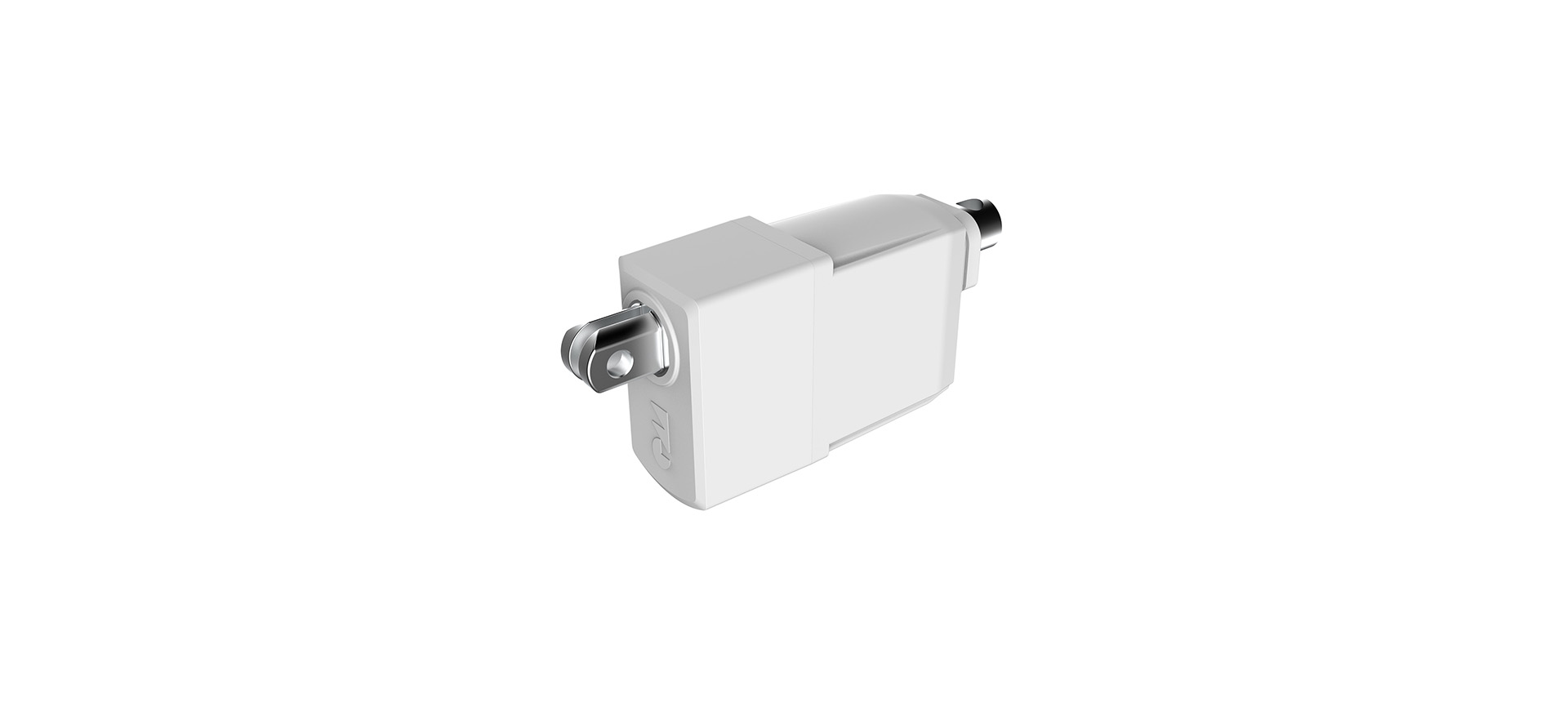

DA31
DA31
Home  >   Products   >  Medical   >  Actuators
Technical data
Colour
Grey
Input voltage
24-29V
Installation size
185+Stroke (25-50mm)
Max. load
3500N
Ambient temperatures
10℃-40℃
Installation angle
0° or 90°
Feedback
Hall sensor
Noise without load
≤60dB(A)@500mm（Ambient noise≤35dB (A))
Duty cycle
Max 2min on / 8min off
Product Description

  1. Compact design and small size, optimal choice for applications with limited space for installation.

  2. High speed and low noise.
